Nexiq USB Link 3 Wired Edition with Diagnostic Software and Repair Information

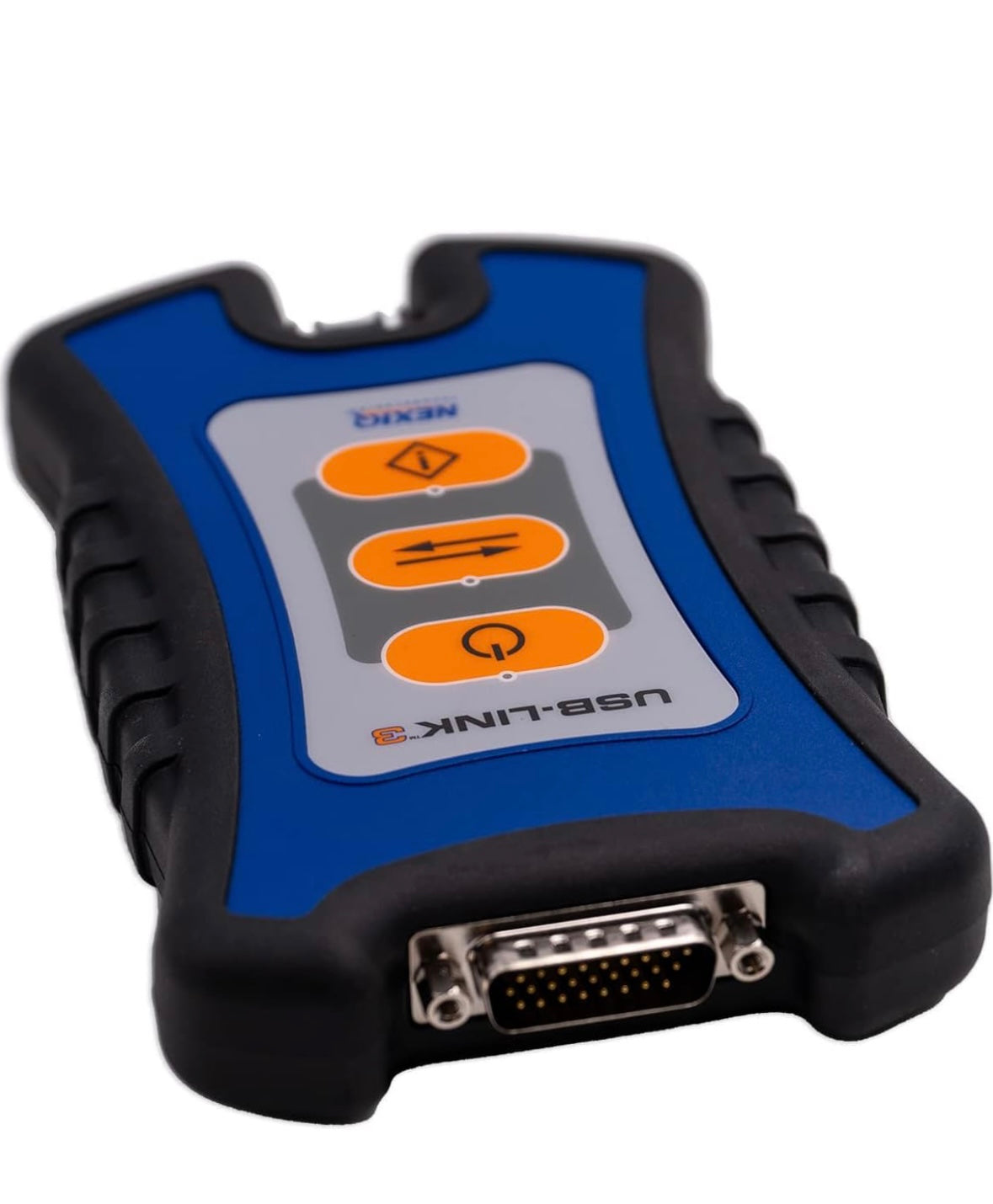

The Nexiq USB-Link 3 PC-to-Vehicle Interface is compatible with multiple software applications, minimizing the need for multiple brand-specific diagnostic tools. This vehicle communication interface (VCI) features sixteen times more RAM than previous versions and supports heavier bus loads across simultaneous channels.

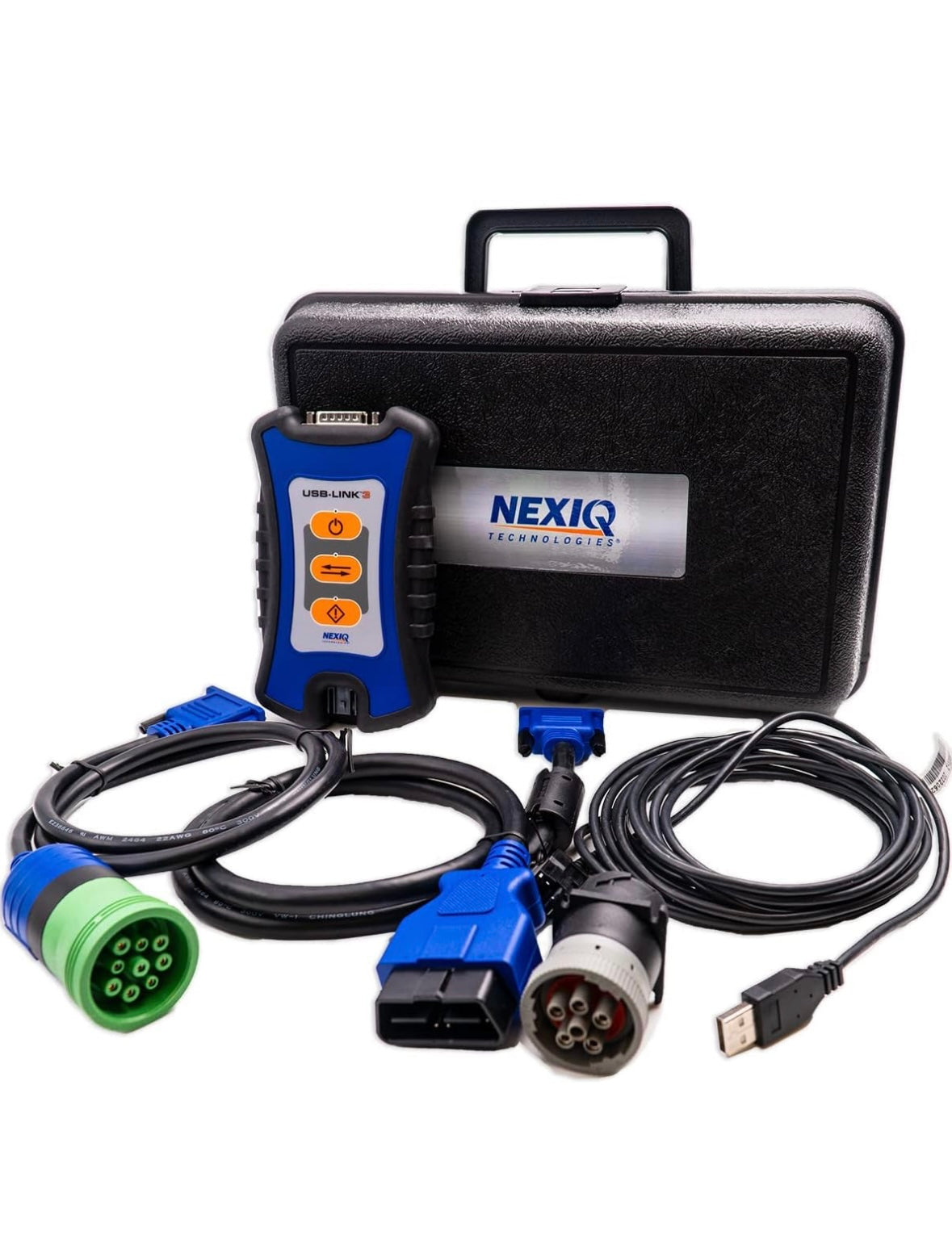

Includes:

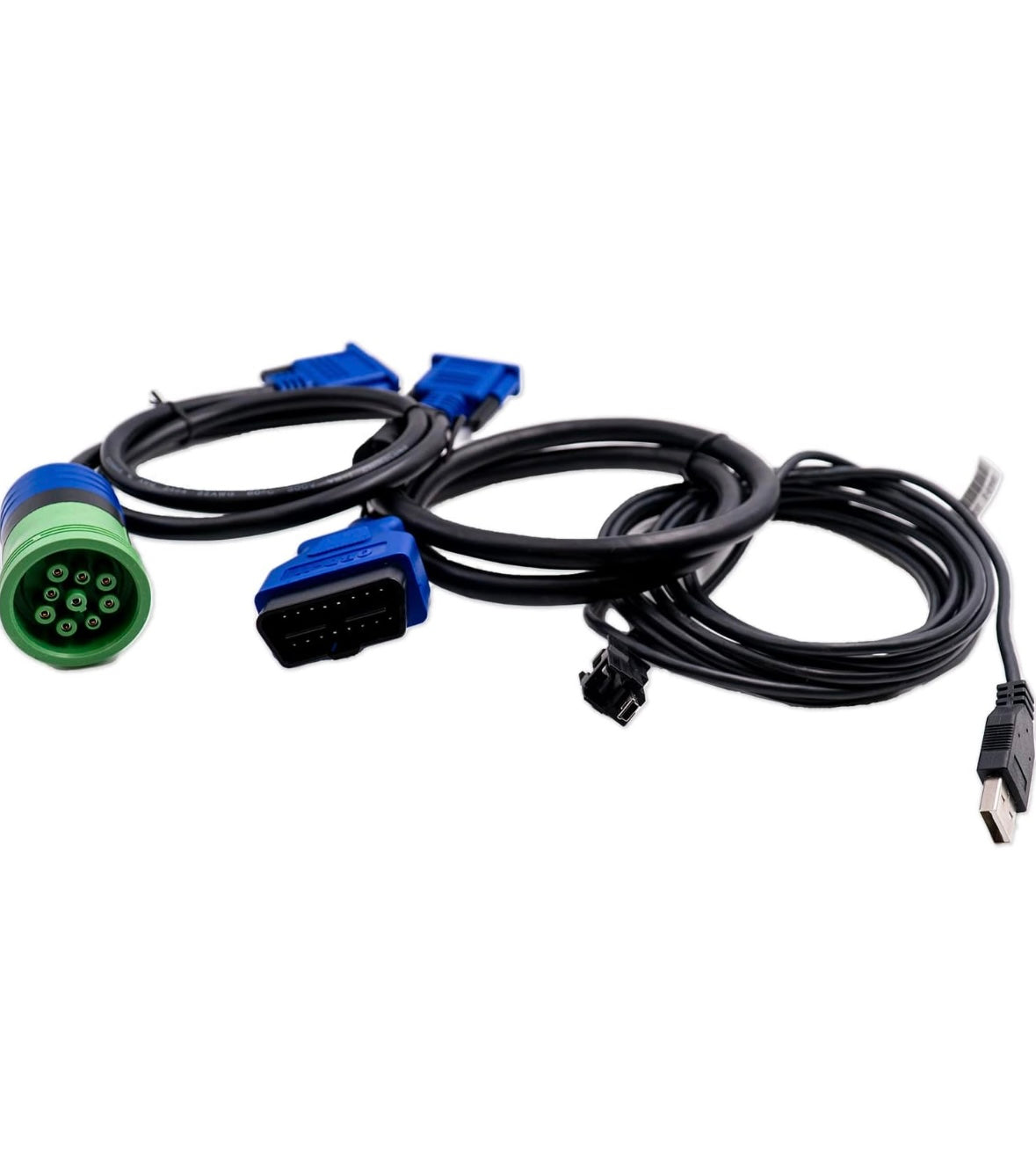

• USB-Link 3 VCI with cable
• Nexiq carrying case
• USB cable with latch (404032)

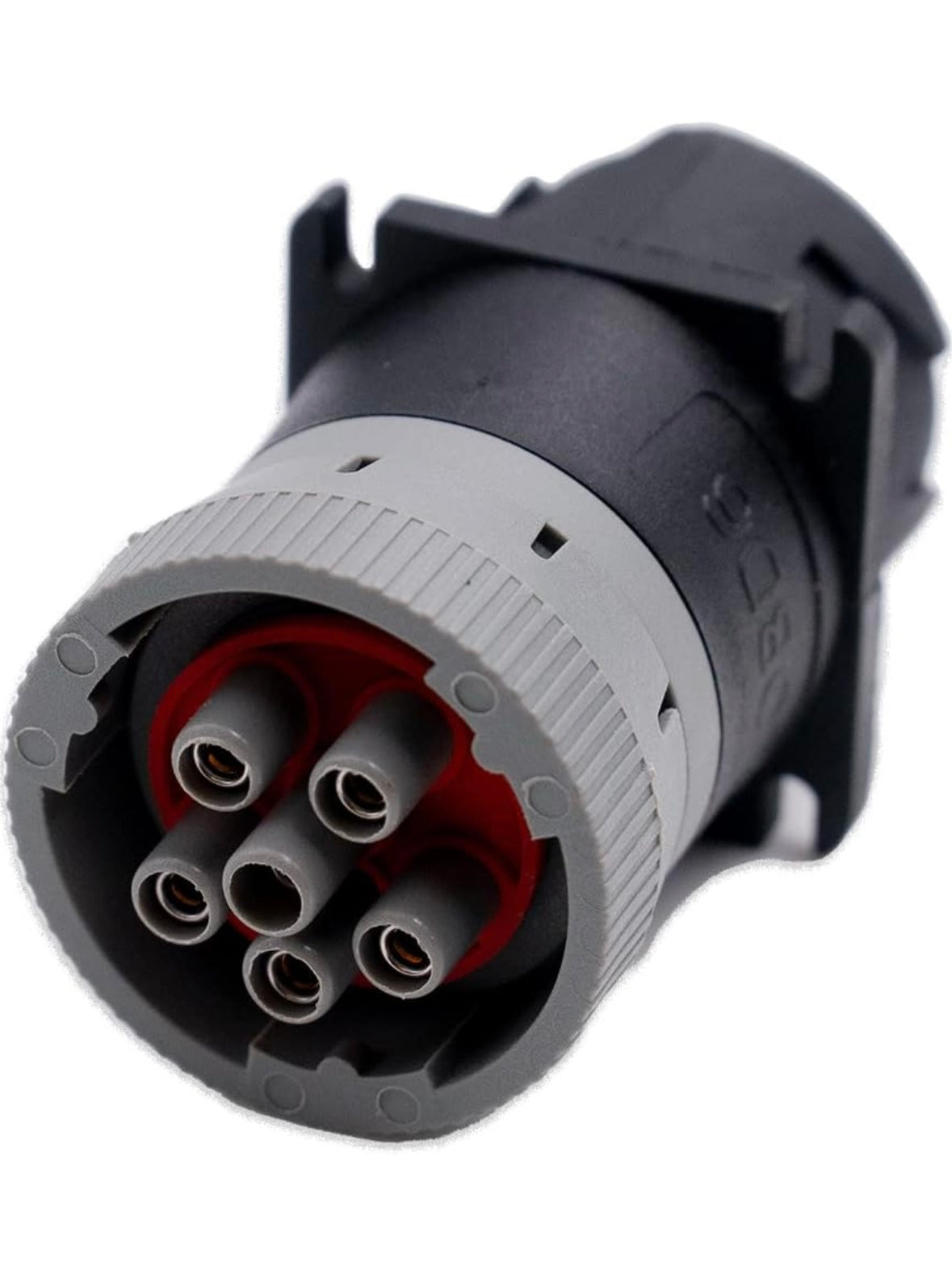

• 9-pin Deutsch adapter (493128)
• J1962 adapter (16-pin OBD II, 491113)
• Diesel Explorer software
• Quick start guide

Specifications & Compatibility

Protocol Support:

• CAN FD / J1939 FD / ISO15765 FD
• Single Wire CAN (SWCAN)
• ISO 11898-3 Fault-Tolerant CAN (FTCAN)
• J1708 and J1850 VPW (Class 2)
• ISO PWM (SCP) and ISO 9141 / KWP2000 (ISO 14230)
• ALDL (9600 and 8192 baud)
• ATEC (160 baud)

Brand Compatibility:

The Nexiq USB-Link 3 works with a wide range of brands and software platforms, including:

Detroit, Allison, Eaton, Isuzu, eTechnician, JPRO, Navistar, International, MaxxForce, Mack, Volvo, PACCAR, Hino, JCB, Haldex, Meritor WABCO, Bendix, CAT, Perkins, and Cummins.
